20 Inch Sand Dredging Equipment Cutter Suction Dredger With High Efficiency
Product Description
The cutter suction dredger uses a rotating cutter to squeeze the soil at the bottom of the river or seabed, mix it with
cement to form mud, suck it into the pump body through a mud suction pipe and send it to the mud discharge area
through a mud discharge pipe. During the construction of the cutter suction dredger, the dredging, mud conveying
and unloading are all integrated, which is completed by itself, and the production efficiency is high.

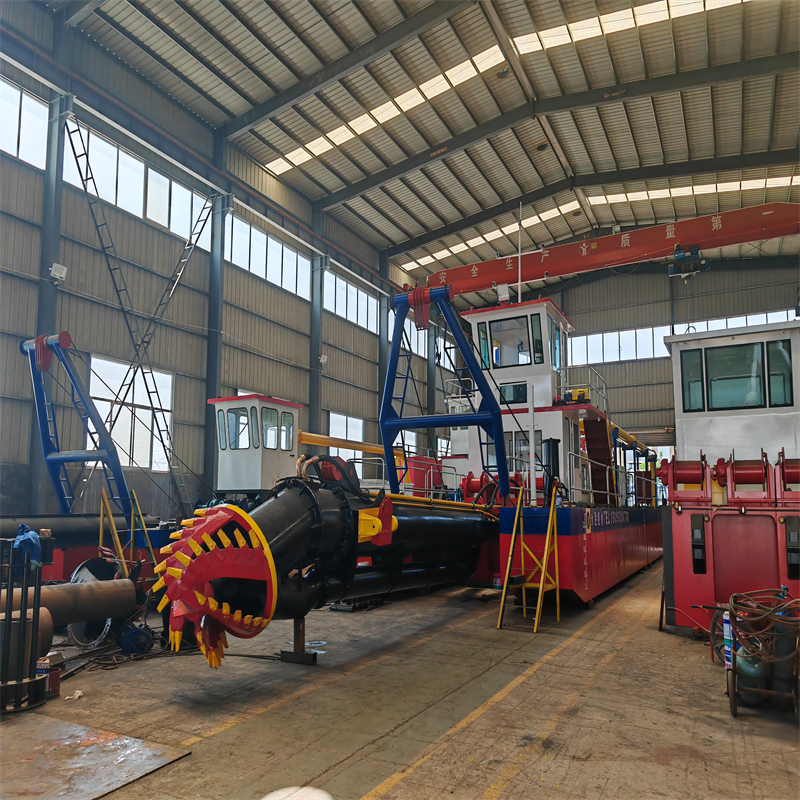

The main structure of a cutter suction dredger includes the hull, cutter, suction pipe, pump body, and discharge pipe.
The cutter is a key component of a cutter suction dredger, usually installed at the bow or side of the ship. By rotating
the cutter, the sediment at the bottom of the water is crushed and mixed with water to form mud. The suction pipe
is used to suck mud into the pump body, which transports the mud to the discharge area through the discharge pipe.
| Model list for hydraulic cutter suction dredger |
| Model | Inch | Diameter pipe | Water flow | Solid
capacity | Total power | Dredging depth | Discharge distance |
| YSCSD150 | 6 Inch | 150 mm | 260 m3/h | 30 cbm/h | 102 KW | 4m | 600 m |
| YSCSD200 | 8 Inch | 200 mm | 600 m3/h | 80 cbm/h | 213 KW | 6m | 800 m |
| YSCSD250 | 10 inch | 250 mm | 1,000 m3/h | 160 cbm/h | 367 KW | 8m | 1,100 m |
| YSCSD300 | 12 inch | 300 mm | 1,500 m3/h | 240 cbm/h | 591 KW | 10 m | 1,100 m |
| YSCSD350 | 14 inch | 350 mm | 2,400 m3/h | 360 cbm/h | 971 KW | 12m | 1,200 m |
| YSCSD400 | 16 Inch | 400 mm | 3,000 m3/h | 500 cbm/h | 1,057 KW | 14m | 1,400 m |
| YSCSD450 | 18 Inch | 450 mm | 3,500 m3/h | 700 cbm/h | 1,462 KW | 15m | 1,500 m |
| YSCSD500 | 20 Inch | 500 mm | 3,800 m3/h | 760 cbm/h | 1,648 KW | 15m | 1,600m |
| YSCSD600 | 24 Inch | 600 mm | 6,000 m3/h | 900 cbm/h | 2,511 KW | 15m | 1,800 m |
| YSCSD650 | 26 Inch | 650 mm | 7,000 m3/h | 1,400 cbm/h | 3,705 KW | Max.18m | 1,800m |
Features:
a. One man operation. The most advanced Siemens PLC control system.
b. New highly effective cutter driven system
c. Reliable hydraulic system.
d. Fresh water cooling system.
e. Completely assembled and fully tested before delivery.
f. Very simple and fast assembly with experienced engineers.
g. Standard design, allowing short delivery times.
h. Standard spare parts available from stock.
i. Designed as standard to qualify for Coastal Waters Certificate.
j. Optional equipment available.
FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
