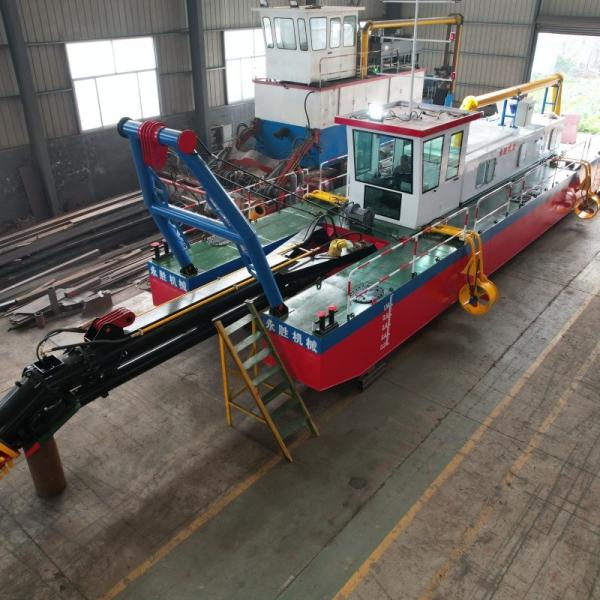

12 Inch Sand Mud Cutter Suction Dredger For Sale

Brand Name : yongsheng

Model Number : csd300

Place of Origin : china

MOQ : 1

Price : 182529usd/piece

Payment Terms : T/T,L/C

Supply Ability : 100piece/Year

Delivery Time : 60 work days

Packaging Details : Container

Customized : customized

Condition : new

Warranty : 1 year

Water Flow : 1200-1500m3/h

Solid Capacity : 240 cbm/h

Max.Dredging Depth 45° : 10m

Discharge Distance : 1100m

Dredger After Assembly : 28.5*5.5*1.5m Length*width*depth

Dredger Structure : Can Be Assembly in Working Site

Average Draught : 1m

Diameter Discharge Pipe : 300mm/12inch

Total Power : 591 kw

Main Engine : 447 kw

Auxiliary Engine Power : 120kw

Generator : 16 kw

Hydraulic Cutter Powerr : 55 kw

Contact Now

12 Inch Sand Mud Cutter Suction Dredger For Sale

Cutter suction dredger is a kind of ship that is widely used in beach dredging projects. It uses the front end of the

suction pipe. The cutter suction pipe is equipped with a rotating cutter device to cut and agitate the river bottom

sediment, and then through the suction pipe, the Mud, mud transport, mud unloading, and other work processes

can be completed continuously at one time. It is a high-efficiency, low-cost dredger and a good underwater excavating

machine. The split structure makes the installation and transportation of the cutter suction boat simpler and more flexible,

can be easily transported to any location. With its robust design, it is the preferred choice in its class due to low maintenance,

excellent fuel consumption, and high productivity levels.


12 Inch Sand Mud Cutter Suction Dredger For Sale

Model list for hydraulic cutter suction dredger
Model Inch Diameter pipe Water flow Solid
capacity
Total power Dredging depth Discharge distance
YSCSD150 6 Inch 150 mm 260 m3/h 30 cbm/h 102 KW 4m 600 m
YSCSD200 8 Inch 200 mm 600 m3/h 80 cbm/h 213 KW 6m 800 m
YSCSD250 10 inch 250 mm 1,000 m3/h 160 cbm/h 367 KW 8m 1,100 m
YSCSD300 12 inch 300 mm 1,500 m3/h 240 cbm/h 591 KW 10 m 1,100 m
YSCSD350 14 inch 350 mm 2,400 m3/h 360 cbm/h 971 KW 12m 1,200 m
YSCSD400 16 Inch 400 mm 3,000 m3/h 500 cbm/h 1,057 KW 14m 1,400 m
YSCSD450 18 Inch 450 mm 3,500 m3/h 700 cbm/h 1,462 KW 15m 1,500 m
YSCSD500 20 Inch 500 mm 3,800 m3/h 760 cbm/h 1,648 KW 15m 1,600m
YSCSD600 24 Inch 600 mm 6,000 m3/h 900 cbm/h 2,511 KW 15m 1,800 m
YSCSD650 26 Inch 650 mm 7,000 m3/h 1,400 cbm/h 3,705 KW Max.18m 1,800m


12 Inch Sand Mud Cutter Suction Dredger For Sale

12 Inch Sand Mud Cutter Suction Dredger For Sale

12 Inch Sand Mud Cutter Suction Dredger For Sale

12 Inch Sand Mud Cutter Suction Dredger For Sale


1. Our factory cutter suction dredger is widely used for river lake port and inside waterways etc. Cutter suction

dredgercan process sand mud gravel from all kinds of dredging project.

2. Our factory cutter suction dredger adopts good quality device to achieve the highest performance .

3. Let the customer spends the lowest cost to get the highest profit configuration of cumins diesel engine ( otherwise

can provide carter Weichai and others diesel engine brand) Shijiazhuang slurry pump and hydraulic pump from

the America or Germany. All configurations can reach the low failure low fuel consumption high capacity and high

efficiency.


* Long-time after-sales service
* Rational and practical design according to customers' request
* Field site service
* Within warranty period, free repair if quality problems emerge.
* Free training of operation and maintenance.
* Supply high quality accessories in low price.
* We make an excellent filing of customers for long-term following-up service.

FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?

2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
